Immediate implant placement into two molar sockets

A 57-year-old male patient presented by referral with two failing molars, teeth #46 and 47. The patient had a clear medical history, and both molars exhibited extensive caries and restoration (Figs. 1–6).

Treatment planning

After thorough discussion, the patient was presented with two options: deep marginal elevation combined with root canal treatment or implant placement. The patient opted for implants, expressing a preference for a long-term fixed solution.

Given the absence of acute infection and the availability of adequate bone, we decided on immediate implant placement with delayed loading for both sites. Immediate placement is preferred, because maintaining the existing hard- and soft-tissue architecture is far more predictable than attempting to rebuild it later.

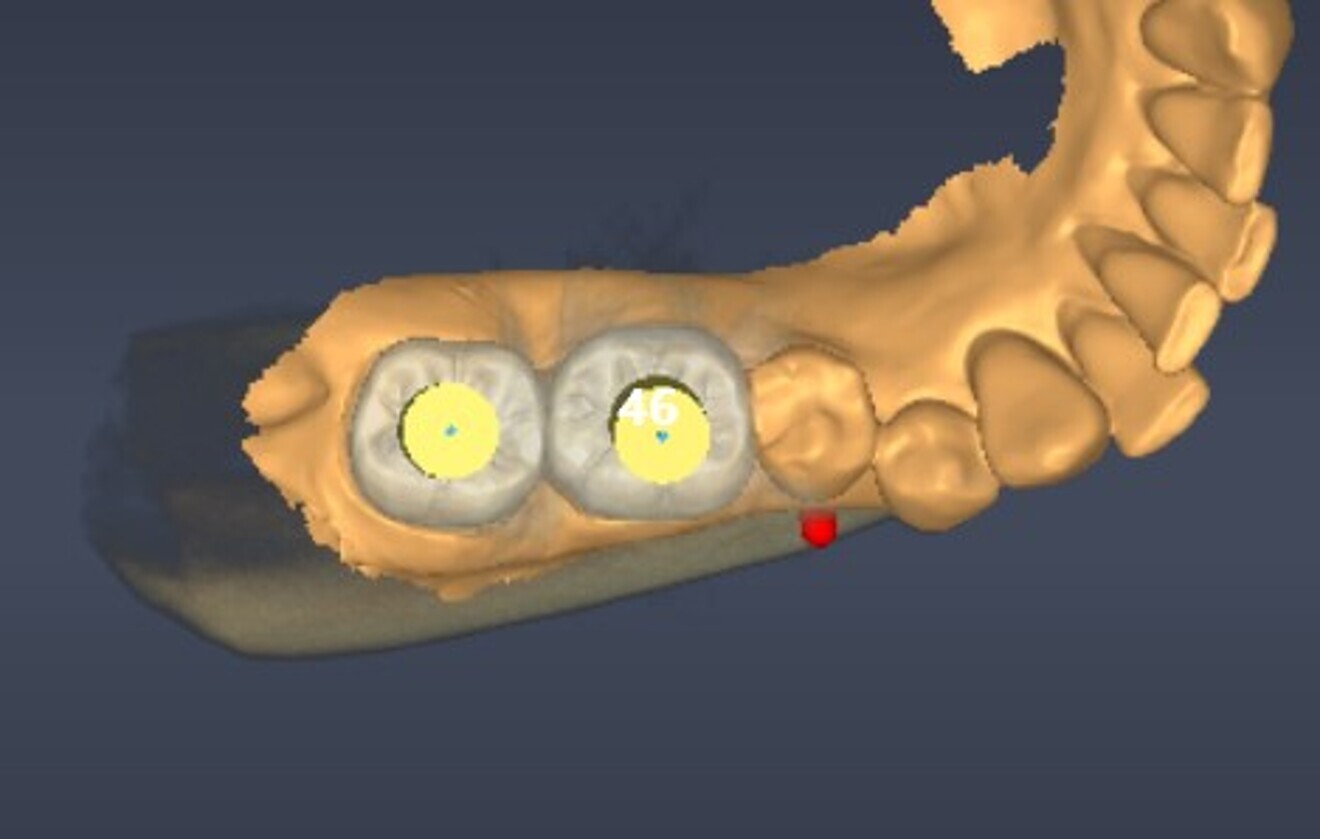

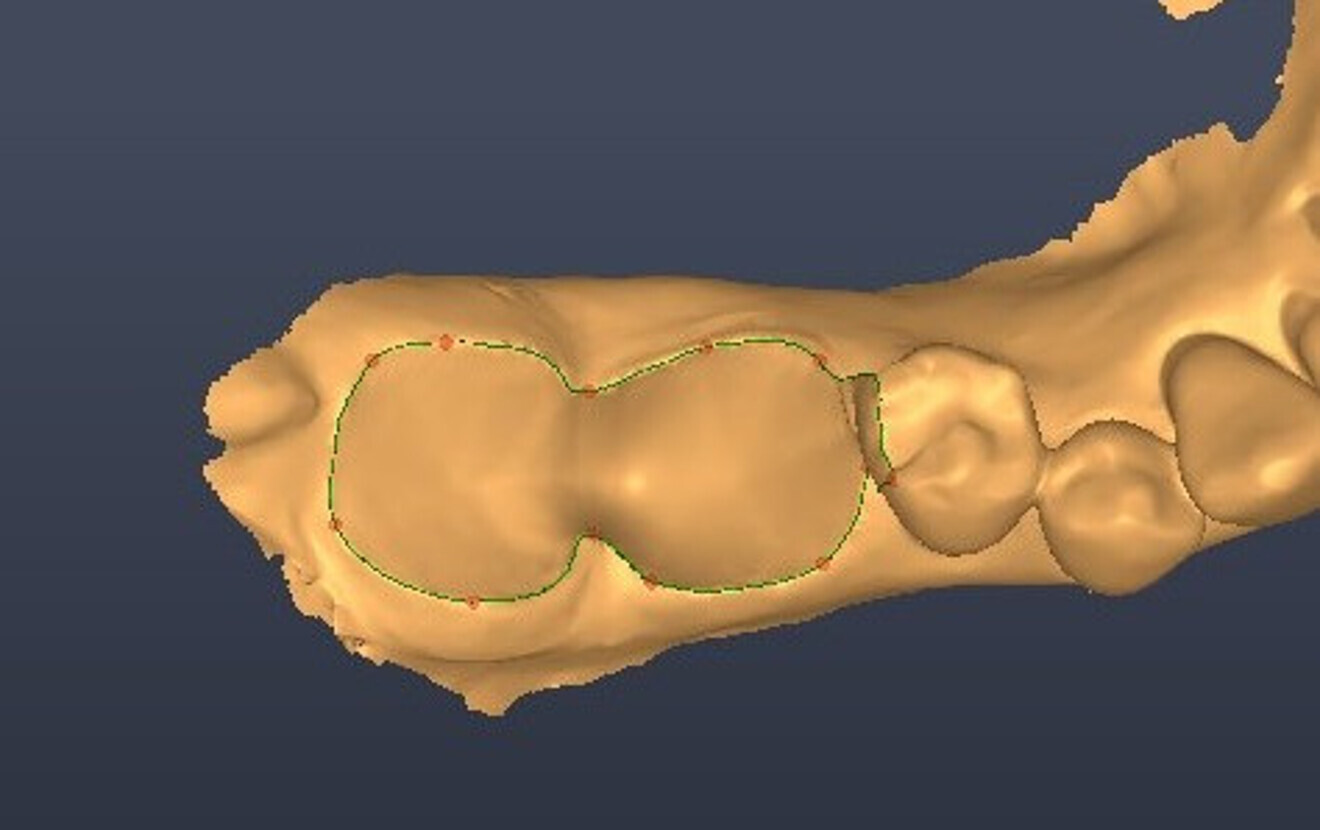

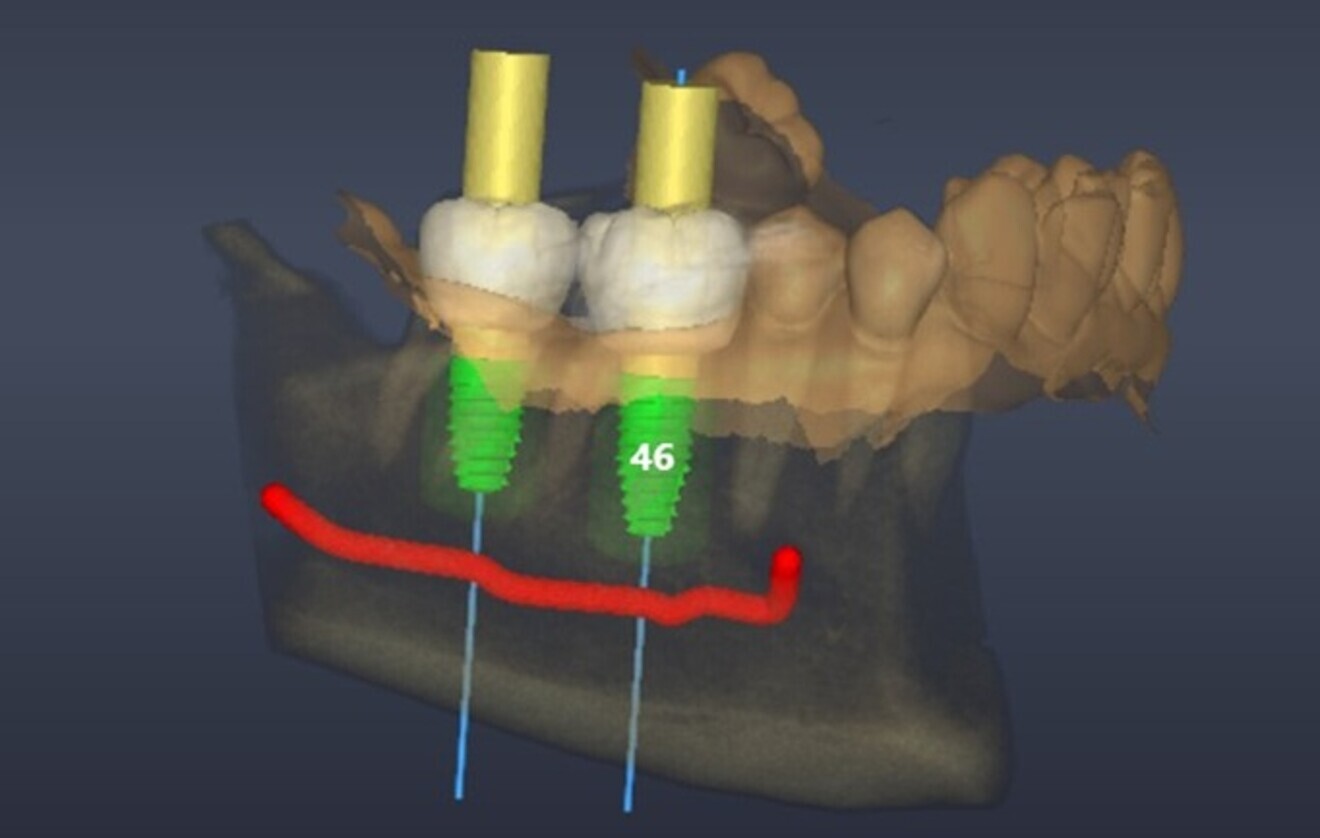

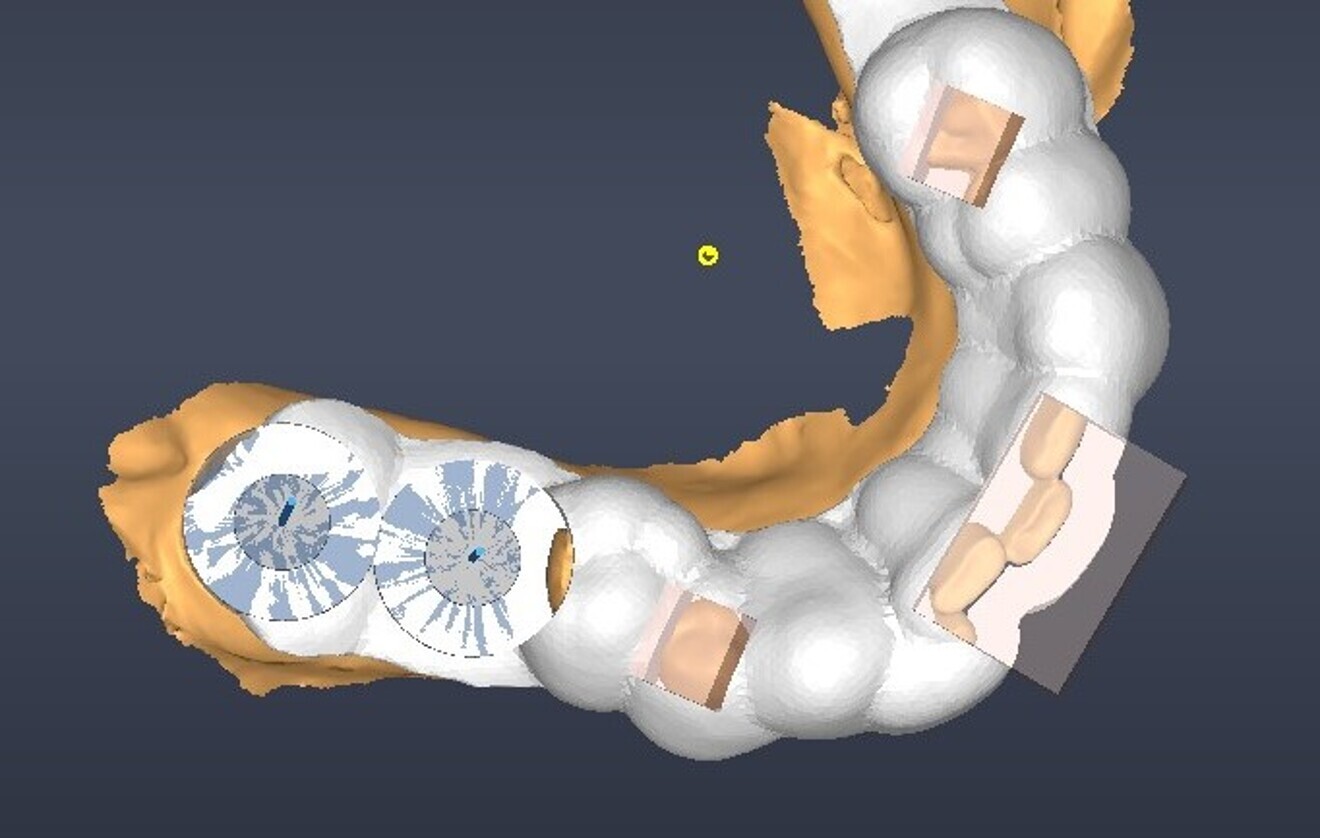

A guided surgical approach was selected, specifically a sleeveless guide, to make use of the precision that it affords in such cases. The DentiqGuide software (3DII) was used to plan treatment in order to establish precise implant positioning. The surgical guide was then printed on a Sonic Mini 8K S (Phrozen), ensuring high accuracy in execution.

The failing teeth were sectioned and extracted atraumatically to preserve the surrounding bone (Fig. 7). The sockets were thoroughly debrided using Lucas curettes to remove any residual infection or granulation tissue (Fig. 8).

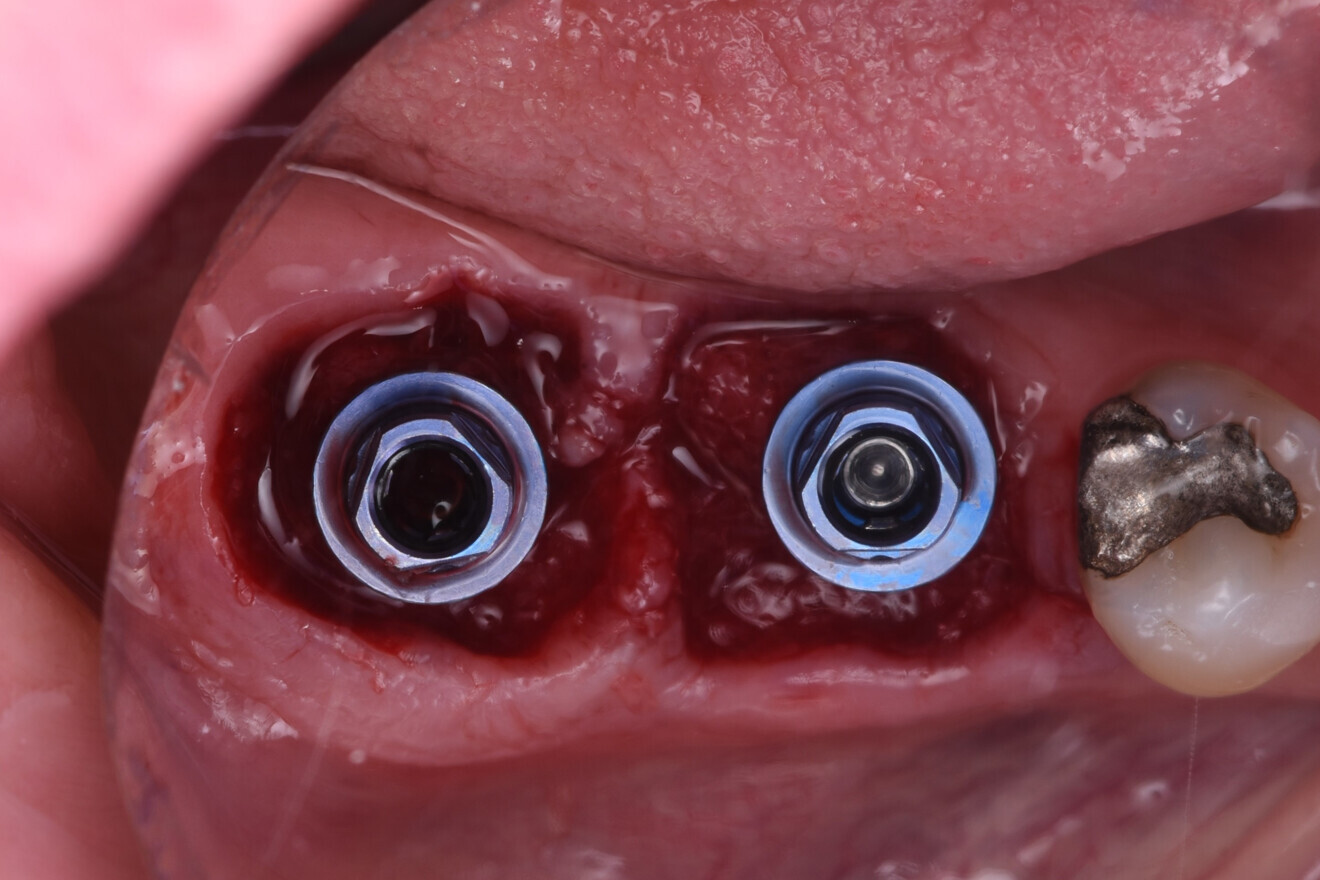

The implants (5 × 9 mm CONELOG PROGRESSIVE-LINE, BioHorizons Camlog) were then placed using the sleeveless surgical guide and the CONELOG guided kit (Figs. 9 & 10).

After verification of the implant placement, the grafting material (MinerOss Putty allograft, BioHorizons Camlog) was packed into the site to the bone level to reduce the build-up of grafting material in the soft tissue.

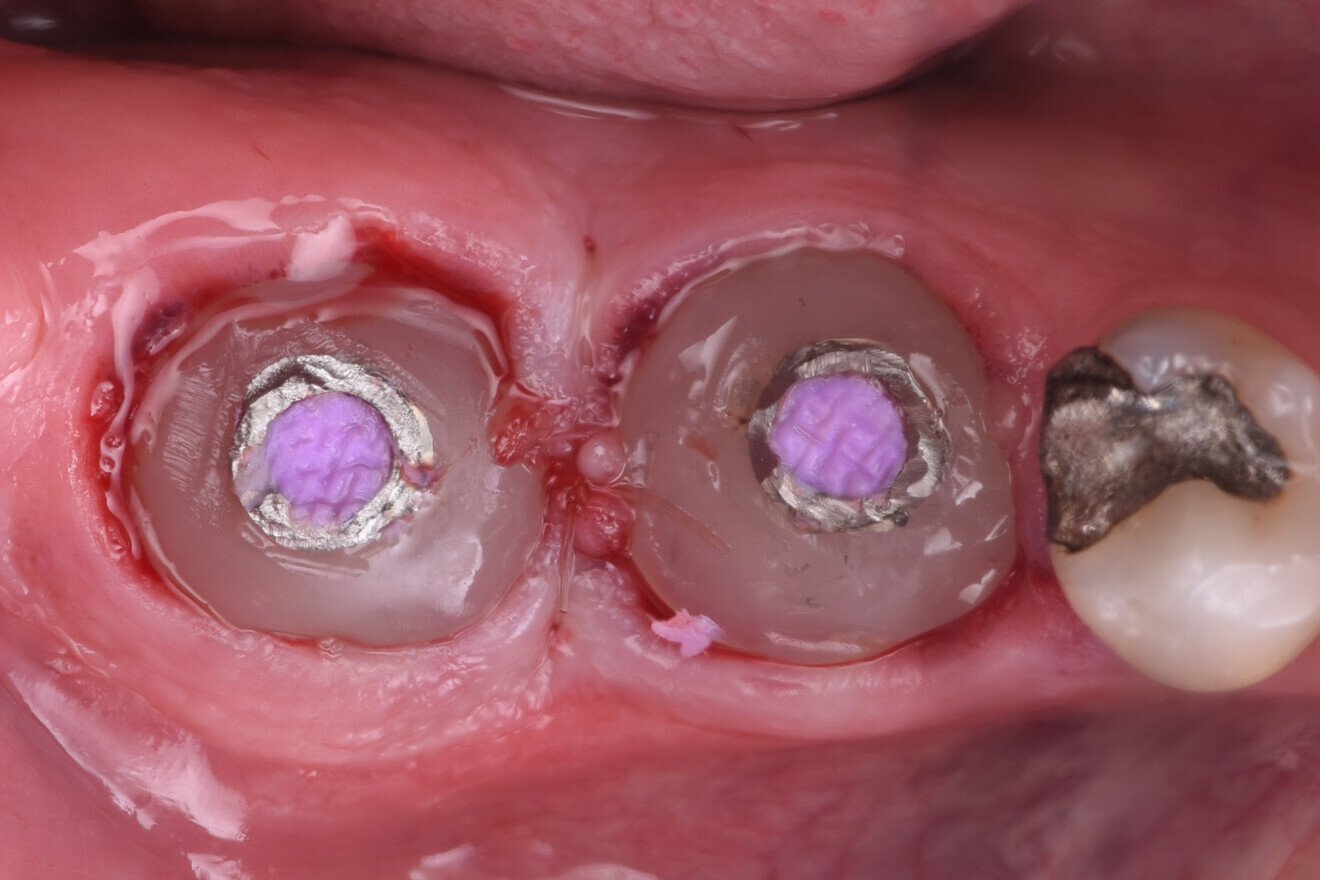

Custom healing abutments were constructed using a temporary abutment and composite, and polished to a high lustre using silicone wheels and then seated (Fig. 11). The patient was given standard postoperative instructions to support healing of the surgical site in the months to come.

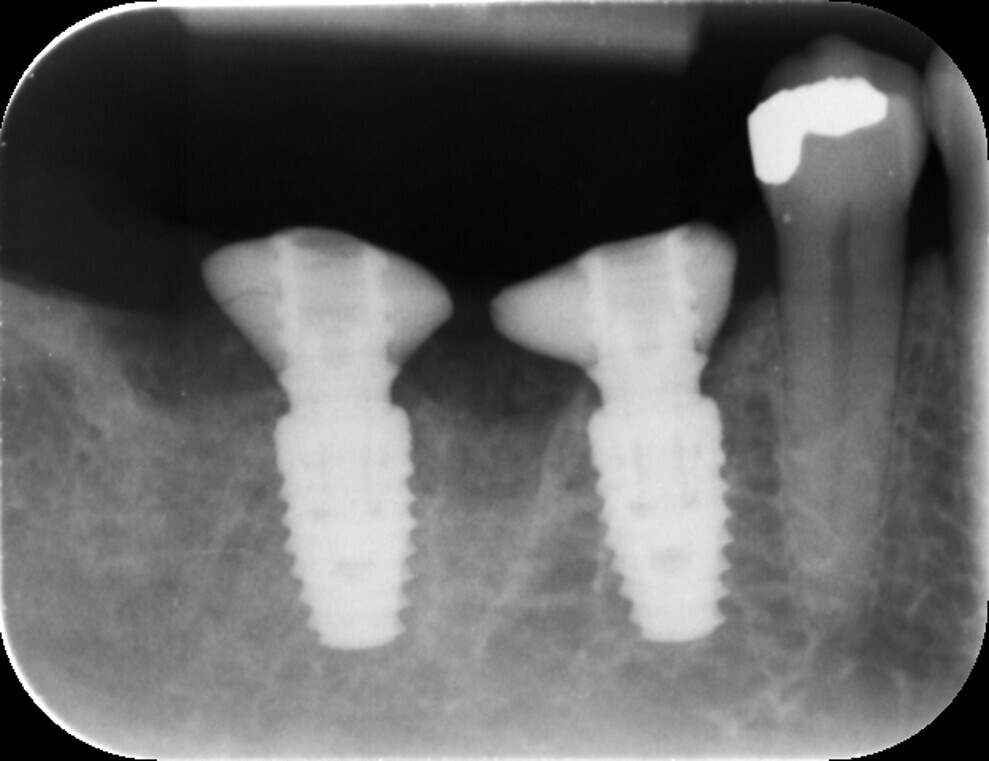

After a healing period of three months, the Medit i700 intra-oral scanner was used to record the implant position and soft-tissue profile, ensuring optimal prosthetic planning and precise restoration (Fig. 12). The implant crowns were constructed using custom milled titanium abutments with a zirconia crown. Care was taken to ensure that any zirconia in contact with the tissue was polished rather than glazed to promote optimal soft-tissue health.

Outcome and discussion

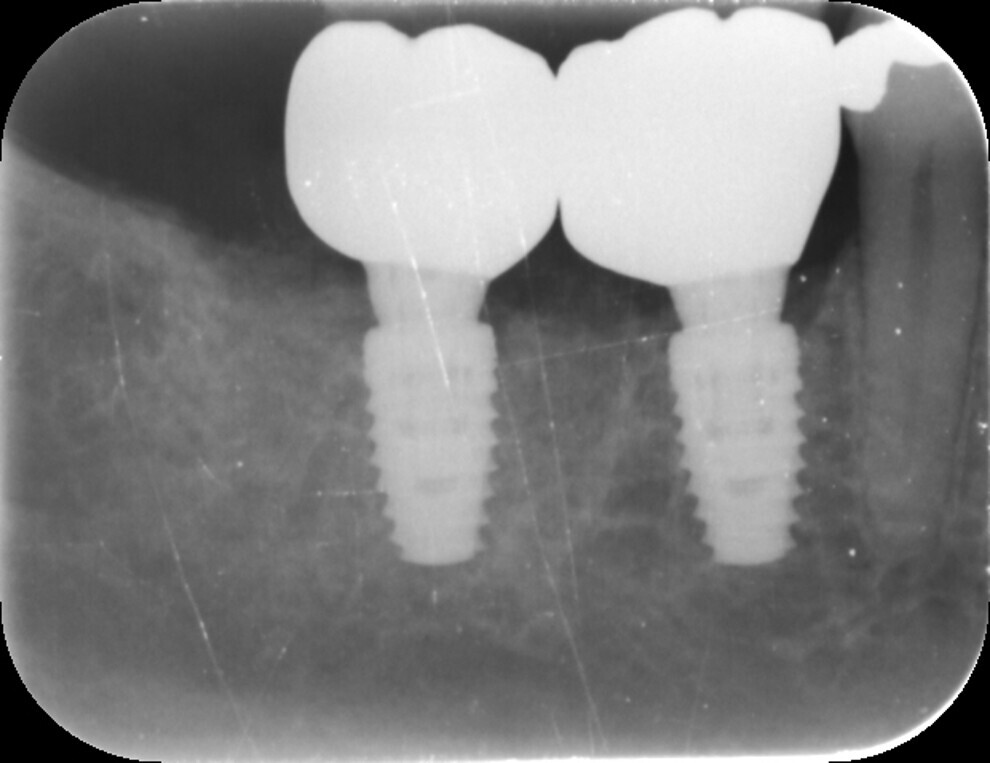

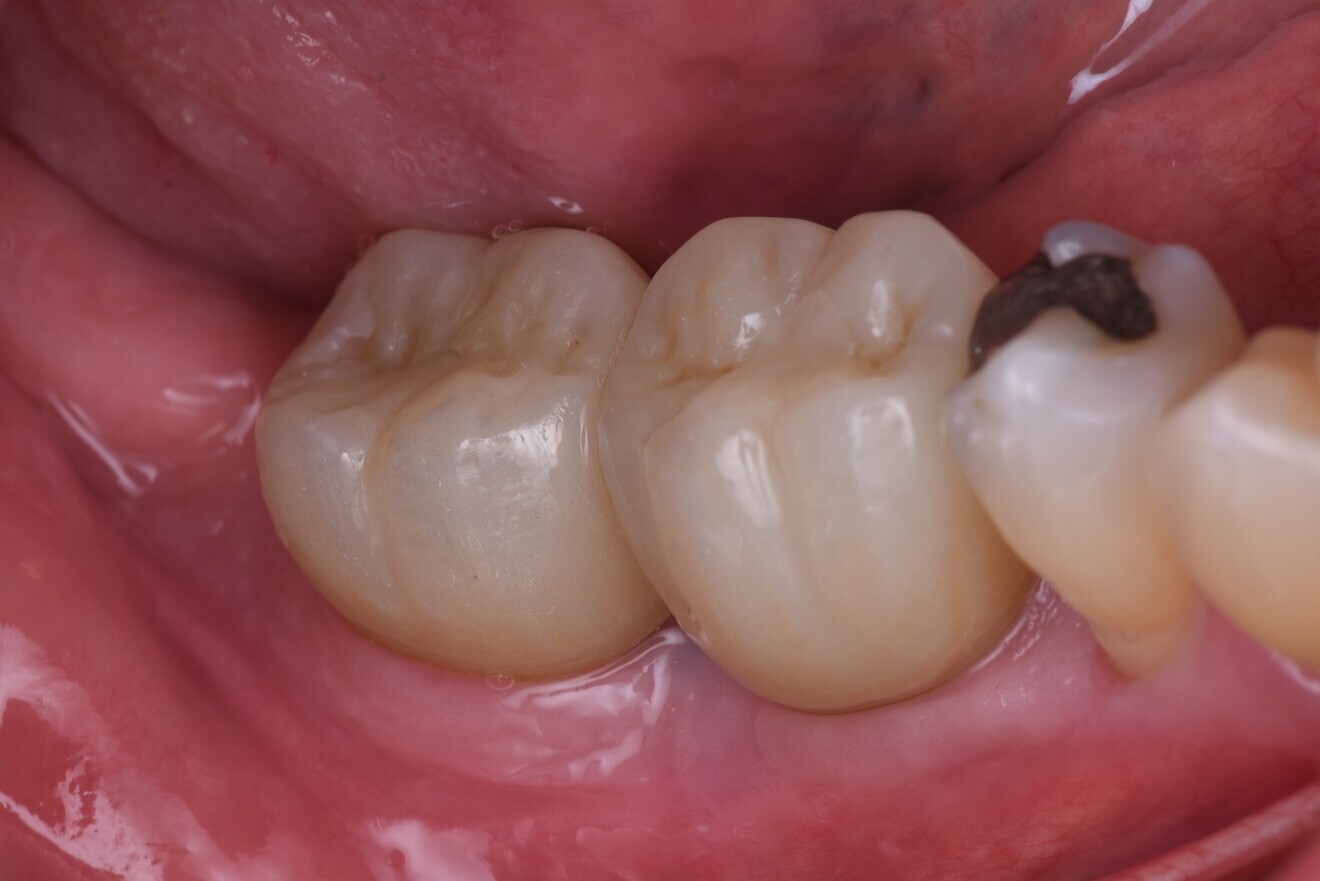

The immediate placement of the CONELOG PROGRESSIVE-LINE implants in both molar sockets proceeded smoothly, achieving excellent primary stability. The hard and soft tissue was well maintained, and excellent soft-tissue thickness and a stable band of keratinised tissue were achieved (Figs. 13–16). This approach not only preserved the existing bone and soft tissue but also provided a solid foundation for future prosthetic restoration. This case highlights the importance of case selection and choice of implant and grafting material in optimising long-term outcomes in implant dentistry.

The use of MinerOss Putty played a crucial role in maintaining bone volume and soft-tissue integrity, further contributing to the long-term success of the implants. This allograft is routinely selected for these cases. Its handling properties are exceptional, making placement easy. Additionally, owing to its 10% collagen composition, its integration is superior, reducing the risk of particle migration or poor cohesion during placement seen with other grafting materials.

Immediate placement, when feasible, offers significant advantages in simplifying long-term maintenance compared with extensive hard- and soft-tissue reconstruction. The CONELOG PROGRESSIVE-LINE implant system continues to be a reliable choice for immediate placement, particularly in molar sites, owing to its excellent design and adaptability, and the CONELOG guided kit’s screw-in carriers allow for very accurate positioning.

The design features of CONELOG PROGRESSIVE-LINE that make it particularly effective include an aggressive thread design for high primary stability; the Promote (sand-blasted, acid-etched) surface treatment, promoting rapid osseointegration; and Grade IV titanium, commercially pure titanium offering predictable osseointegration. CONELOG PROGRESSIVE-LINE implants are especially well suited for molar sites owing to the conical connection with platform switching.

When combined with the correct depth of placement, this ensures stable crestal bone levels over time. One of the standout features is the availability of various sizes, including a 5 mm implant that allows for a conical connection while maintaining a less aggressive emergence profile compared with other systems.
