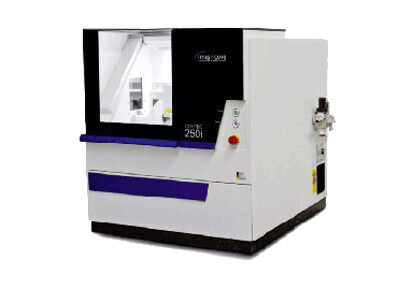

CORiTEC 250i/250i Dry

CORiTEC 250i and 250i CORiTEC dry machine systems are the most widely used CAD/CAM entry level systems. Thanks to their 5-axis technology, these machines can also produce complex dentures with diverging stumps without rework. CORiTEC 250i milling machines are ideal if a good price/performance ratio is the main principal objective + the very high ﬂexibility of the machine system.

The CORITEC 250i also features an option of wet processing. Wet processing takes place mostly in the processing of CAD/CAM blocks and special plastic materials.

Technical Highlights

5-axis machining system with up to 30° axis orientation
Extraction system to extract the resulting particulate matter
Tool runtime control/breakage control
Automatic compressed air and coolant monitoring
Integrated cooling circuit for cooling lubricant (only CORJTEC 250i)
For processing of zirconium dioxide, PMMA, wax, plastics, and grindable block materials
HF spindle up to 60,000 rpm
Control software Remote DENTAL 2.0
High-resolution and high-performance micro-step controllers and motors on all axes control PC with Windows 7/8
Air purge system and cooling nozzles for wet processing are integrated in the spindle holder. High precision through integrated temperature compensation!
