DEXIS intra-oral scanners now with triple scanning workflow for dentures

The DEXIS IS ScanFlow Version 1.0.9 software now streamlines denture treatment planning by integrating a dedicated scanning workflow, simplifying the challenge of capturing occlusion in edentulous patients. (All images: DEXIS)


Thu. 19 October 2023


QUAKERTOWN, Penn., US: One of the greatest challenges of the denture workflow is the capture of occlusion on an edentulous patient. A dedicated denture scanning workflow is now included in the DEXIS IS ScanFlow Version 1.0.9 scanning software. This streamlines the treatment planning process by combining the capture of the bite registration and prosthesis along with the edentulous and denture scans.

This means that the manual process of matching and aligning data sets by the laboratory is eliminated—a real time-saver for both patient and dentist. The software also provides embedded scanning tips to optimise and simplify the data acquisition for the edentulous arch.

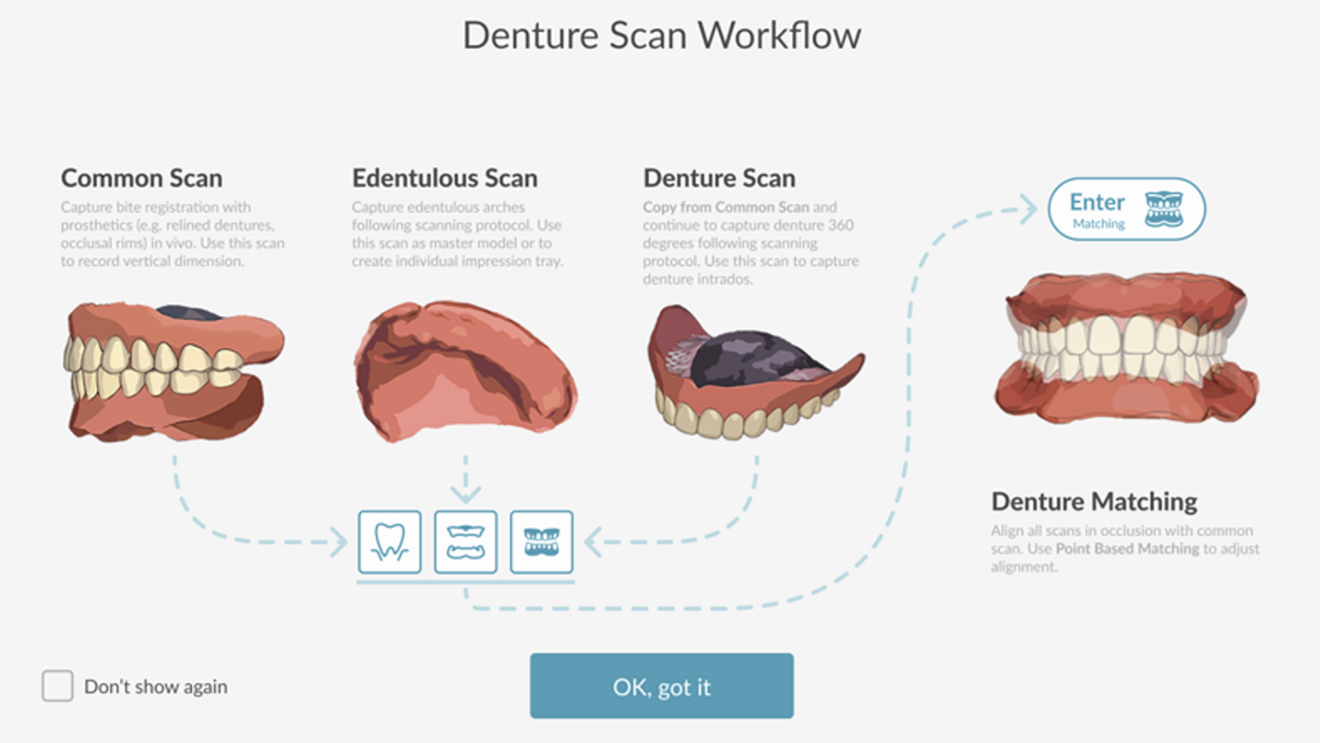

Denture scanning workflow quick tutorial.

Denture scanning workflow quick tutorial.

As an alternative to the above workflow, for completely edentulous cases, edentulous arches can be scanned first (to produce individual tray and occlusal rims), then the occlusal rims are captured (with recording material) in the upper and lower jaw, respectively, and finally, a bite registration is taken (to record the vertical dimension of occlusion, VDO).

The VDO can be transferred from the common scan to the edentulous scan after matching.

Denture matching

Denture matching allows the denture scanning workflow triple scans to be automatically matched in occlusion, especially to match the intrados of the denture or occlusal rims with the edentulous surface. Either automatic matching or point-based matching can be used. For the latter, three to six pairs of matching points can be selected.

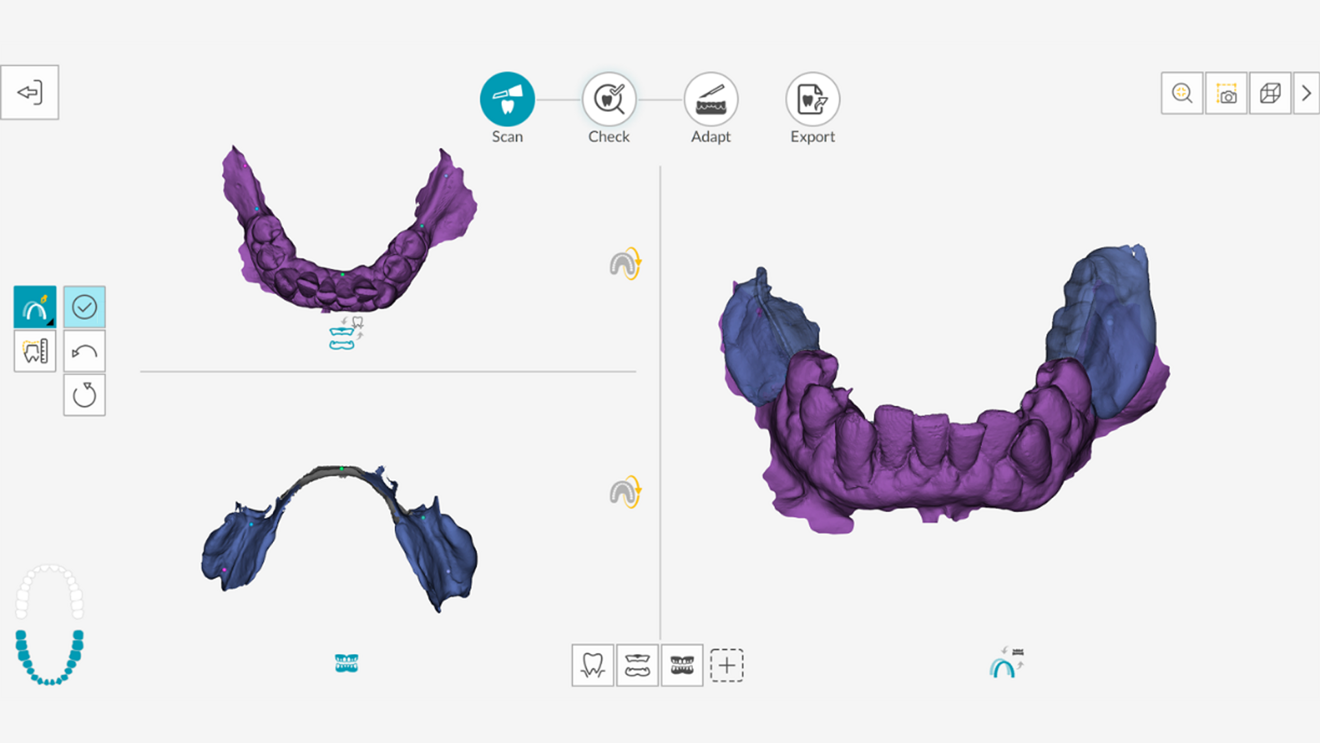

Denture matching in DEXIS IS ScanFlow.

Denture matching in DEXIS IS ScanFlow.

Superimposition View

Superimposition View allows the clinician to view all the scans in the same occlusion in preparation, implant or denture workflows to ease patient communication. Additionally, they can turn off True Color to review in pseudo-colours for better contrast.

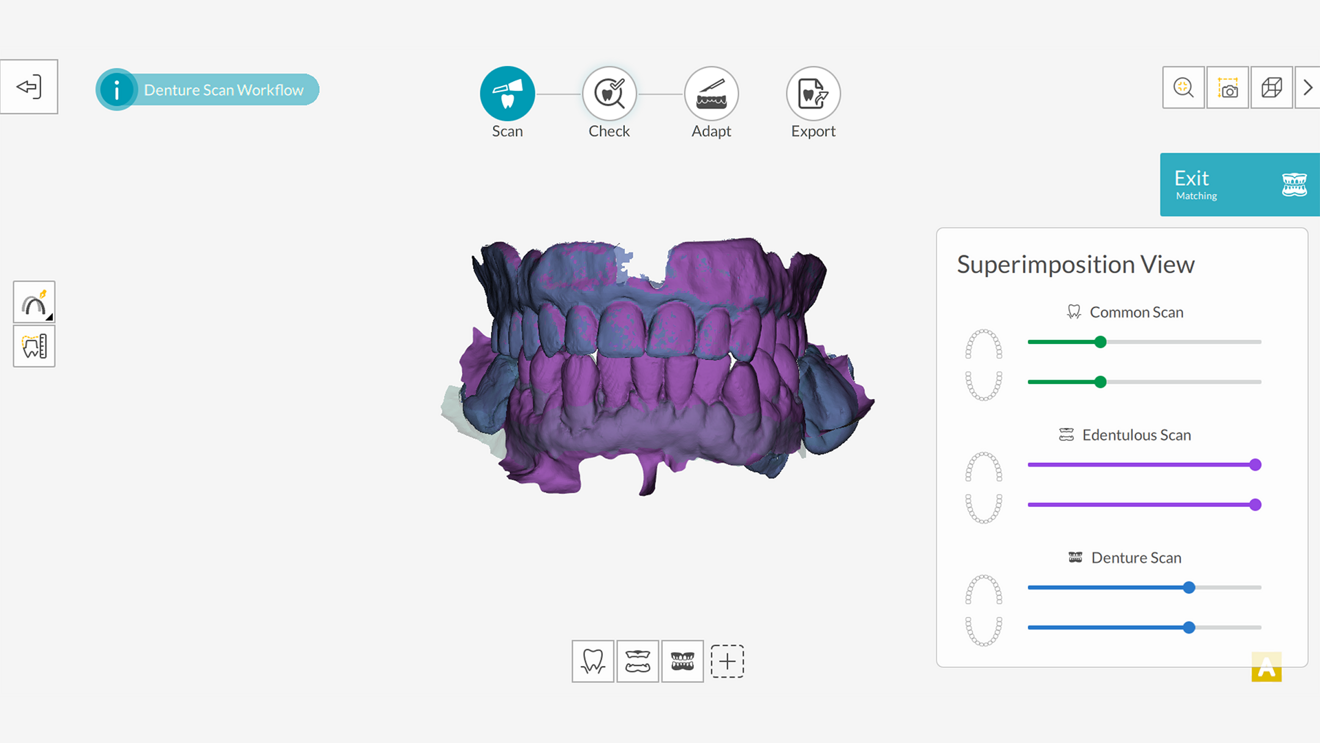

Superimposition View in DEXIS IS ScanFlow.

Superimposition View in DEXIS IS ScanFlow.

In addition to denture matching, Superimposition View is available for implant matching.

The following sets out the steps of the denture workflow in detail using the example of a relined complete denture:

  1. Scanning of the relined denture: Recording material is placed on the denture, and pressurised impressions of the edentulous arches are taken. Then a 360° scan is performed of the relined denture with the DEXIS intra-oral scanner from the common scan function.
  2. Capture of the VDO: If needed, the VDO with the dentures in situ can be adjusted by adding recording material. After that, the bite registration is acquired.
  3. Edentulous scan: If required, a scan of the completely edentulous arch can be acquired via the edentulous scan mode following the scanning protocol.
  4. Matching and checking: The denture and edentulous scans are matched, and the alignment is checked. The preparation check tool is used to make measurements if necessary. This step can be skipped if no edentulous scan has been taken.
  5. Sending for fabrication: The new denture is ordered from the preferred laboratory.
  6. Denture try-in: The denture is tried in the patient’s mouth and adjusted if needed.

For first dentures or relined dentures with partial dentures, the workflow steps are slightly different. More information about the workflow and product demonstration of the software and/or scanner is available on the DEXIS website.
